Integrating SAP ECC with third-party applications is crucial for driving efficiency across your business. Whether it’s connecting SAP to a CRM, a logistics platform, or other external systems, maintaining smooth data exchange is essential. And at the heart of this process is the SAP proxy — a bridge that enables secure, efficient communication between SAP and non-SAP environments. But as indispensable as they are for ensuring data flow, some common proxy errors in SAP ECC create issues from time to time.
From connection timeouts to authorization issues, proxy-related challenges can disrupt your integration efforts. However, these problems are solvable with the right approach. We’ll walk you through some of the most common proxy errors in SAP ECC and how to resolve them to keep your SAP and non-SAP systems seamlessly integrated.
Table of Contents
Why Are Proxies Essential for SAP and Non-SAP Integration?
When integrating SAP ECC with non-SAP systems, direct communication isn’t always possible due to differences in formats, protocols, and security requirements. That’s where a proxy comes in—it acts as a secure mediator that enables SAP to communicate with external systems. This setup not only ensures that data is transmitted securely but also helps manage the performance of the integrated systems, especially when handling large data volumes.
However, like any intermediary, proxies can encounter issues that disrupt communication. Knowing how to troubleshoot these problems can save valuable time and ensure your integrations stay on track.
Advantages of Using Proxy in SAP ECC
Before diving into error resolution, it’s worth highlighting the key advantages of using proxies in your SAP integrations:
Simplified Integration
Proxies make it easier to connect SAP with external systems by handling much of the complexity involved in data exchange. They reduce the need for custom coding and lower the chances of miscommunication between systems.
Scalability
As your business grows and more systems are added, proxies can easily accommodate additional integrations, allowing you to scale without significant infrastructure changes.
Error Management
Proxies can log and identify issues during the data exchange process, making it easier for IT teams to diagnose and resolve integration problems quickly.
Common Proxy Errors in SAP ECC
While proxies are essential for enabling communication between SAP ECC and external systems, certain errors can arise during the integration process. These common issues can disrupt the flow of data and hinder system performance, but understanding their root causes is the first step toward resolving them efficiently.
Connection Timeout
One of the most frequent issues, connection timeout occurs when the proxy takes too long to establish a connection with the external system. If left unresolved, it can delay critical data exchange, impacting workflows that rely on real-time information.
Authorization Problems
Even if your systems are connected, a lack of proper permissions can prevent the proxy from accessing the necessary data. This usually stems from misconfigured credentials or access controls.
Data Format Mismatches
When integrating systems that speak different data languages, a mismatch in formats can cause errors. For example, if SAP expects a particular XML structure but the non-SAP system sends JSON, the data exchange can fail.
Example: Troubleshooting Connection Test Proxy Errors in SAP ECC
Let’s take a common scenario: You’re conducting a connection test between SAP ECC and a non-SAP system to validate the integration. Despite having all the technical parameters configured, you receive an error during the test. These types of proxy-related issues are typical, but they can be resolved efficiently by following a structured troubleshooting process.
Here’s how to approach it.
Step-by-Step Guide to Resolving Proxy Errors in SAP ECC
Pre-Requisites
To create the data communication between SAP and non-SAP Application Agent, we need to validate the connection test in RFC Destination (i.e, WE21).
That is why before going with the connection test, we create the Logical system in SAP, then Open the respective logical system in WE21 T-code (RFC Destination).

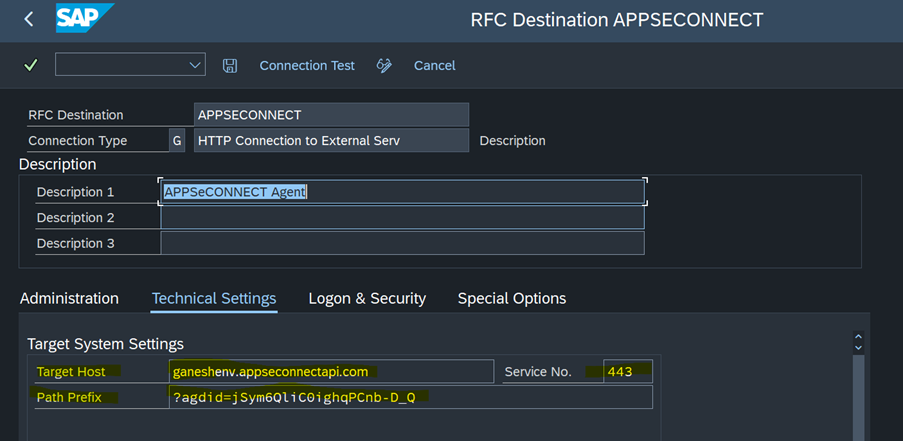

Step 1: Validate Technical Settings
First, ensure that the non-SAP system’s real-time URL is correctly configured in SAP’s technical settings. This URL acts as the endpoint for the communication, and any inaccuracies here can immediately cause a connection failure.

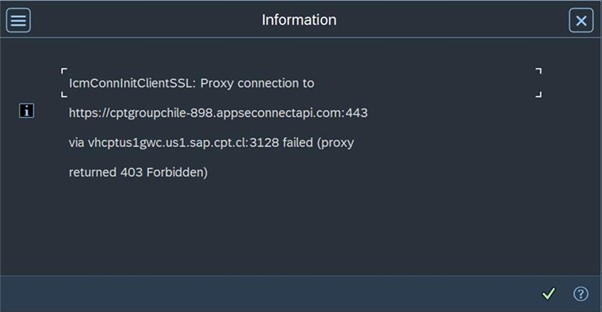

Step 2: Run the Connection Test
Once the technical details are in place, click on “Connection Test” to initiate the test using the SAP transaction WE21 (RFC Destination). If the test results in an error, note the error message as it will often provide insight into where the problem lies.

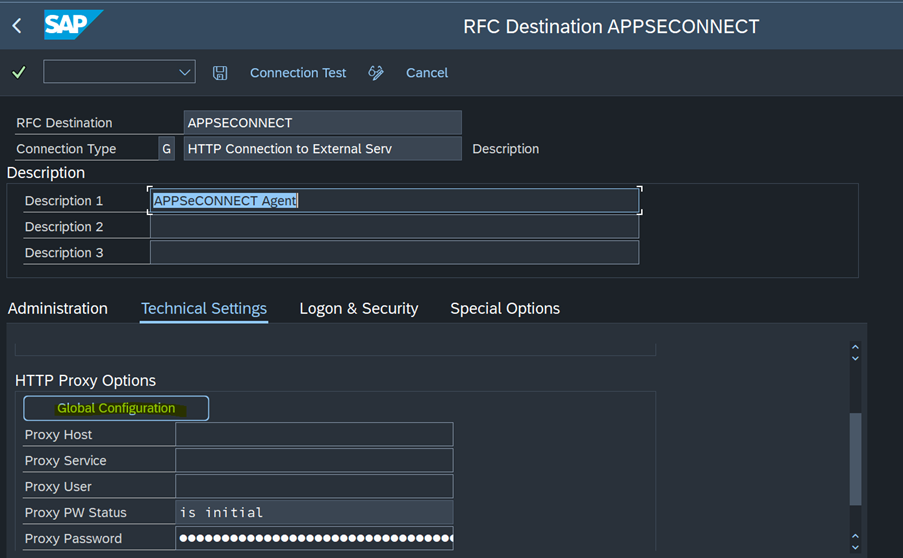

Step 3: Review Proxy Configuration
Click on “Global Configuration” button in HTTP Proxy Options.

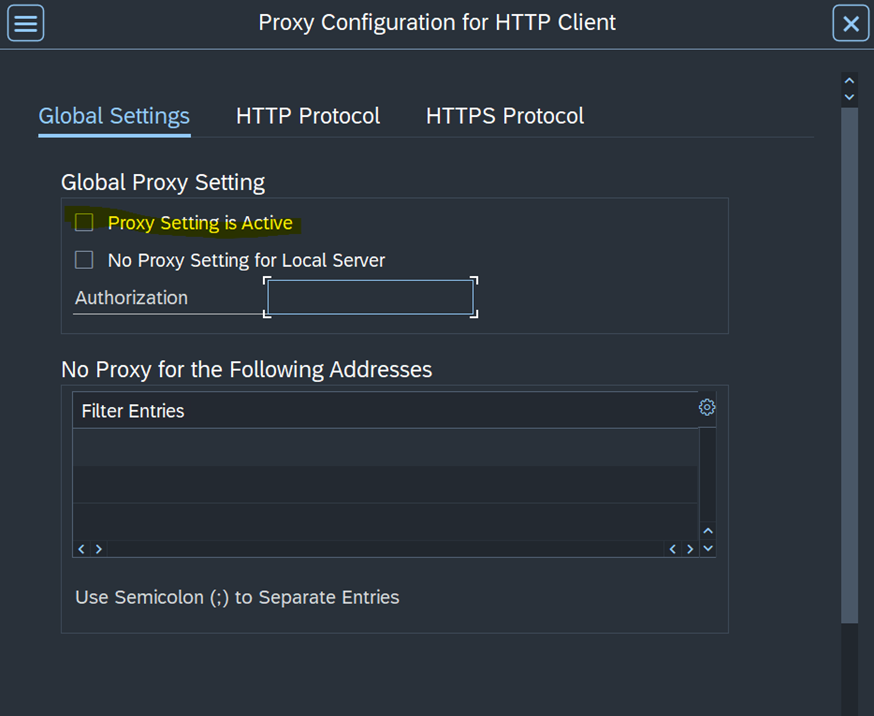

The configuration pop-up window will open. Now check if the “Proxy Setting is Active” option is enabled or disabled.
If it is enabled, please disable the field and save the changes.
Now run the connection test again. This way, you will be able to solve such Proxy Errors in SAP ECC.
Step 4: Re-Test the Connection
After making the necessary adjustments, run the connection test again. If the error persists, cross-check other potential causes such as authorization settings, firewall configurations, or data format discrepancies between SAP and the non-SAP application.
Setting up a proxy for SAP ECC system integration is crucial for achieving secure, efficient, and scalable business operations. Addressing common proxy errors promptly ensures that data flows smoothly, keeping your business running without interruptions.
Final Thoughts: Ensuring Seamless SAP Integration
Setting up a proxy for SAP ECC integration is necessary, and while encountering proxy errors is inevitable, addressing these issues proactively ensures that your business processes remain uninterrupted. By following the steps outlined above, you can quickly resolve common proxy challenges and keep your integration projects running smoothly.
Regularly monitoring your system configurations and staying on top of potential integration risks will allow you to detect, and fix or mitigate issues before they impact operations. With proper handling, proxy-related errors can be minimized, ensuring that your SAP and non-SAP systems work together seamlessly.
